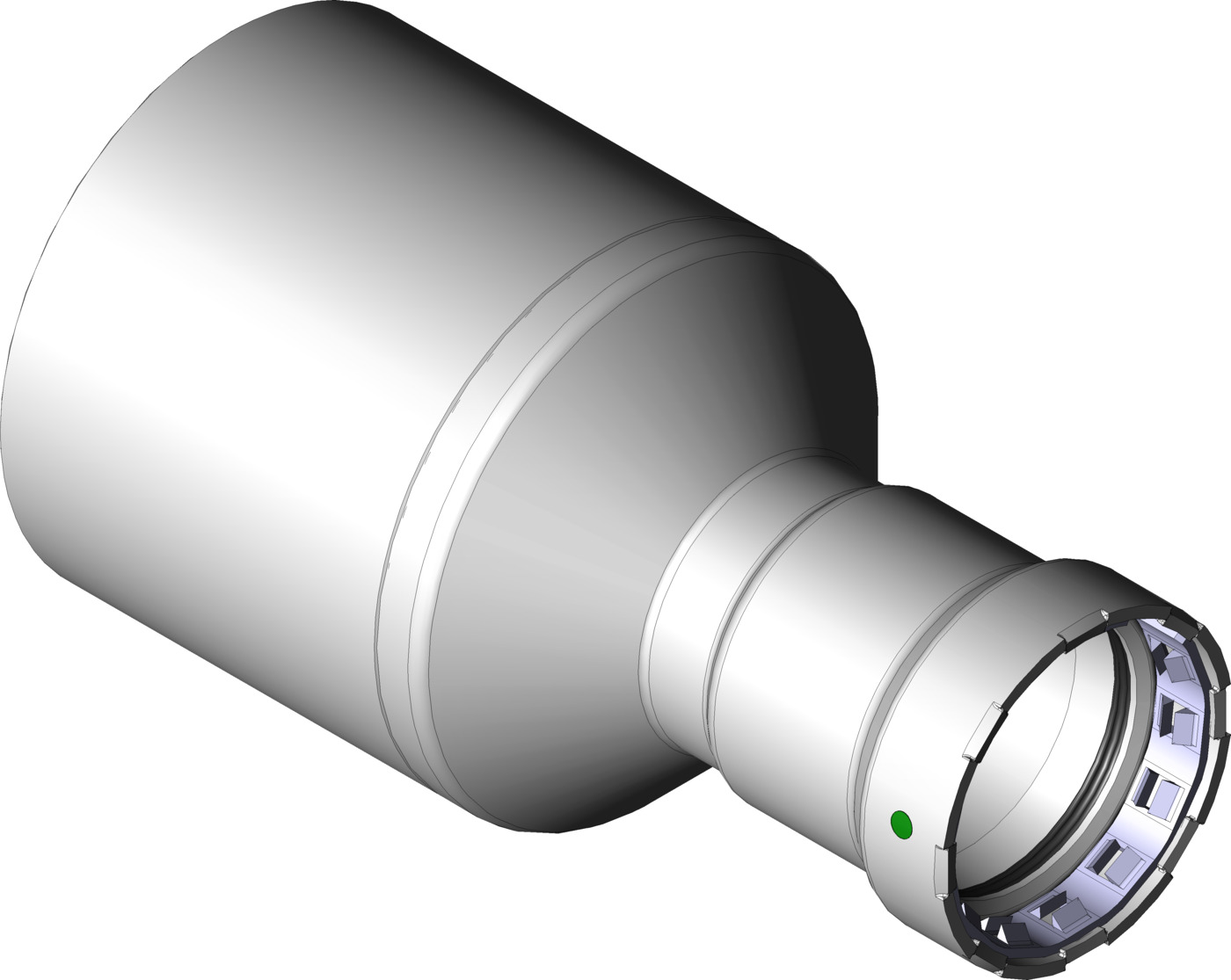

Viega MegaPress reducer

Viega MegaPress reducer

Smart Connect Technology

For use with Sch. 5 to Sch. 40 carbon steel pipe
Carbon steel, zinc-nickel coating
Street, press connection

Components

FKM sealing element, grip ring, separator ring

Note

Must be installed with MegaPress XL rings and PressBooster/Z3 actuator.

Model 4815.1XL

articles

FTG (IPS)	P	Wt [lb]	DG	Quantity	Part No	amount
FTG (IPS)	P	Wt [lb]	DG	Quantity	Part No	amount
2½	1	1.181	12	1	26700	amount.
2½	1¼	1.305	12	1	26705	amount.
2½	1½	1.411	12	1	26710	amount.
2½	2	1.492	12	1	26715	amount.
3	1¼	1.933	12	1	26720	amount.
3	1½	2.085	12	1	26725	amount.
3	2	2.191	12	1	26730	amount.
3	2½	2.206	12	1	26735	amount.
4	1½	3.075	12	1	26740	amount.
4	2	3.110	12	1	26745	amount.
4	2½	3.037	12	1	26750	amount.
4	3	3.262	12	1	26755	amount.

Z-dimensions

FTG (IPS)	P	Z [mm]	L [mm]	Part No
FTG (IPS)	P	Z [mm]	L [mm]	Part No
2½	1	88	122	26700
2½	1¼	86	132	26705
2½	1½	84	131	26710
2½	2	75	126	26715
3	1¼	119	165	26720
3	1½	117	164	26725
3	2	111	161	26730
3	2½	112	158	26735
4	1½	148	196	26740
4	2	140	191	26745
4	2½	144	189	26750
4	3	138	197	26755

certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
26510, 26515, 26520, 26525, 26530, 26535, 26540, 26545, 26550, 26555, 26560, 26575, 26580, 26565, 26590, 26595, 26585, 26600, 26570, 26605, 26610, 26615, 26620, 26625, 26630, 26635, 26640, 26645, 26650, 26655, 26660, 26665, 26670, 26760, 26765, 26770, 26775, 26780, 26785, 26500, 26505, 26685, 26690, 26695, 26700, 26710, 26705, 26715, 26725, 26720, 26730, 26735, 26740, 26745, 26750, 26755, 26675	FM Approval Certificate	FM Class 1920	United States English
26510, 26515, 26520, 26525, 26530, 26535, 26540, 26545, 26550, 26555, 26560, 26575, 26580, 26565, 26590, 26595, 26585, 26600, 26570, 26605, 26610, 26615, 26620, 26625, 26630, 26635, 26640, 26645, 26650, 26655, 26660, 26665, 26670, 26760, 26765, 26770, 26775, 26780, 26785, 25120, 25115, 25110, 25125, 25615, 25150, 25620, 25610, 25590, 25145, 25600, 25595, 25580, 25140, 25585, 25635, 25625, 25645, 25640, 25155, 25630, 25020, 25015, 25010, 25025, 25030, 25050, 25045, 25040, 25055, 25035, 25220, 25215, 25210, 25225, 25435, 25440, 25505, 25410, 25415, 25455, 25460, 25485, 25320, 25375, 25370, 25315, 25510, 25515, 25310, 25325, 25400, 25395, 25390, 25250, 25245, 25240, 25255, 25715, 25710, 25725, 26500, 26505, 26685, 26690, 26695, 26700, 26710, 26705, 26715, 26725, 26720, 26730, 26735, 26740, 26745, 26750, 26755, 84215, 84220, 84225, 84235, 84240, 84230, 84245, 84250, 84265, 84260, 84255, 84270, 84300, 84295, 84790, 84800, 84780, 84805, 84280, 84285, 84290, 84810, 84750, 84755, 84765, 84770, 84760, 84775, 84275, 84795, 84785, 84305, 84315, 84320, 84325, 84310, 84330, 84340, 84345, 84335, 84350, 84355, 84360, 84385, 84435, 84380, 84455, 84440, 84370, 84365, 84375, 84430, 84460, 84450, 84390, 84445, 84400, 84405, 84410, 84465, 84415, 84395, 84420, 84425, 84820, 84815, 84825, 84830, 84840, 84835, 84100, 84105, 84115, 84125, 84110, 84120, 25740, 25745, 25750, 25755, 25960, 25935, 25930, 25945, 25940, 25955, 25950, 25965, 84155, 84150, 84145, 84140, 84135, 84130, 84895, 84890, 84900, 84885, 84880, 84875, 84925, 84930, 84920, 84905, 84915, 84910, 84605, 84585, 84590, 84595, 84600, 84565, 84570, 84575, 84580, 84555, 84560, 84545, 84550, 84845, 84850, 84855, 84860, 84870, 84865, 84210, 84195, 84180, 84185, 84170, 84175, 84160, 84165, 84205, 84200, 84190, 26675	UL213 Certificate MP & MP FKM	EX6157-20130123	United States English
26510, 26515, 26520, 26525, 26530, 26535, 26540, 26545, 26550, 26555, 26560, 26575, 26580, 26565, 26590, 26595, 26585, 26600, 26570, 26605, 26610, 26615, 26620, 26625, 26630, 26635, 26640, 26645, 26650, 26655, 26660, 26665, 26670, 26760, 26765, 26770, 26775, 26780, 26785, 25100, 25120, 25115, 25110, 25125, 25105, 25130, 25615, 25150, 25620, 25610, 25590, 25145, 25600, 25595, 25580, 25140, 25585, 25635, 25625, 25645, 25640, 25155, 25630, 25575, 25135, 25000, 25020, 25015, 25010, 25025, 22005, 26030, 26025, 26020, 26015, 26005, 26010, 26045, 26040, 26035, 26000, 25030, 25050, 25045, 25040, 25055, 25035, 25200, 25220, 25215, 25210, 25225, 25205, 26060, 26050, 26070, 26065, 26075, 26055, 25435, 25440, 25500, 25505, 25410, 25415, 25455, 25460, 25405, 25445, 25485, 25465, 25480, 25300, 25320, 25360, 25375, 25370, 25365, 25315, 25510, 25350, 25515, 25310, 25335, 25340, 25325, 25380, 25400, 25395, 25390, 25385, 25305, 25330, 25230, 25250, 25245, 25240, 25255, 25235, 26110, 26100, 26120, 26115, 26125, 26105, 25700, 25720, 25715, 25710, 25725, 25705, 26500, 26505, 26685, 26690, 26695, 26700, 26710, 26705, 26715, 26725, 26720, 26730, 26735, 26740, 26745, 26750, 26755, 84215, 84220, 84225, 84235, 84240, 84230, 84245, 84250, 84265, 84260, 84255, 84270, 84300, 84295, 84790, 84800, 84780, 84805, 84280, 84285, 84290, 84810, 84750, 84755, 84765, 84770, 84760, 84775, 84275, 84795, 84785, 84305, 84315, 84320, 84325, 84310, 84330, 84340, 84345, 84335, 84350, 84355, 84360, 84385, 84435, 84380, 84455, 84440, 84370, 84365, 84375, 84430, 84460, 84450, 84390, 84445, 84400, 84405, 84410, 84465, 84415, 84395, 84420, 84425, 84820, 84815, 84825, 84830, 84840, 84835, 84100, 84105, 84115, 84125, 84110, 84120, 25740, 25745, 25750, 25755, 25730, 25735, 25075, 25070, 25085, 25080, 25095, 25090, 25960, 25935, 25930, 25945, 25940, 25955, 25950, 25965, 84155, 84150, 84145, 84140, 84135, 84130, 84895, 84890, 84900, 84885, 84880, 84875, 84925, 84930, 84920, 84905, 84915, 84910, 84605, 84585, 84590, 84595, 84600, 84565, 84570, 84575, 84580, 84555, 84560, 84545, 84550, 84845, 84850, 84855, 84860, 84870, 84865, 84210, 84195, 84180, 84185, 84170, 84175, 84160, 84165, 84205, 84200, 84190, 76545, 76555, 76550, 76560, 76565, 76570, 26675	IAPMO Certificate	M-8332	United States English
