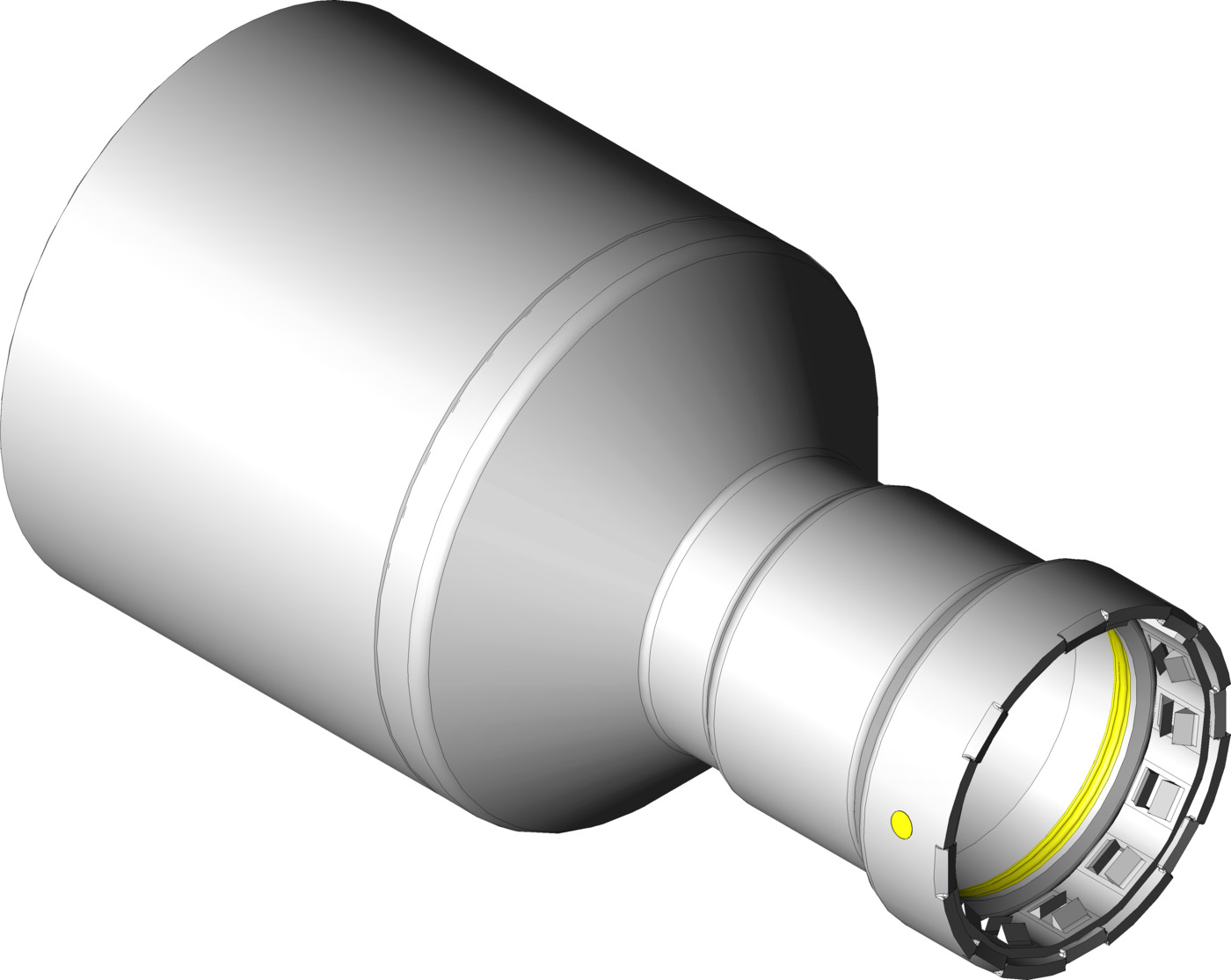

Viega MegaPressG reducer

Viega MegaPressG reducer

Smart Connect Technology

For use with Sch. 10 to Sch. 40 carbon steel pipe
Carbon steel, zinc-nickel coating
Street, press connection

Components

HNBR sealing element, grip ring, separator ring

Note

Must be installed with MegaPress XL rings and PressBooster/Z3 actuator.

Model 6615.1XL

Articles

FTG (IPS)	P	Wt [lb]	DG	Quantity	Part No	amount
FTG (IPS)	P	Wt [lb]	DG	Quantity	Part No	amount
2½	1	1.210		1	28800	amount.
2½	1¼	1.351		1	28805	amount.
2½	1½	1.457		1	28810	amount.
2½	2	1.534		1	28815	amount.
3	1¼	1.942		1	28820	amount.
3	1½	2.061		1	28825	amount.
3	2	2.181		1	28830	amount.
3	2½	2.169		1	28835	amount.
4	1½	2.980		1	28840	amount.
4	2	3.130		1	28845	amount.
4	2½	3.086		1	28850	amount.
4	3	3.526		1	28855	amount.

CAD files

(Please choose)

FTG (IPS)	P	file size		Part No
FTG (IPS)	P	file size		Part No
2½	1	50 KB		28800
2½	1¼	50 KB		28805
2½	1½	50 KB		28810
2½	2	52 KB		28815
3	1¼	52 KB		28820
3	1½	59 KB		28825
3	2	51 KB		28830
3	2½	42 KB		28835
4	1½	53 KB		28840
4	2	51 KB		28845
4	2½	41 KB		28850
4	3	42 KB		28855

Z-dimensions

FTG (IPS)	P	Z [mm]	L [mm]	Part No
FTG (IPS)	P	Z [mm]	L [mm]	Part No
2½	1	88	122	28800
2½	1¼	86	132	28805
2½	1½	84	132	28810
2½	2	76	126	28815
3	1¼	119	165	28820
3	1½	117	164	28825
3	2	111	161	28830
3	2½	112	158	28835
4	1½	149	197	28840
4	2	140	191	28845
4	2½	144	189	28850
4	3	138	197	28855

Certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
25101, 25121, 25116, 25111, 25126, 25106, 25131, 25616, 25606, 25151, 25621, 25611, 25591, 25146, 25601, 25596, 25581, 25141, 25586, 25636, 25626, 25646, 25641, 25156, 25631, 25576, 25136, 25001, 25021, 25016, 25011, 25026, 22009, 26026, 26031, 26021, 26016, 26006, 26011, 26046, 26041, 26036, 26001, 25031, 25051, 25046, 25041, 25056, 25036, 25201, 25221, 25216, 25211, 25226, 25206, 26061, 26051, 26071, 26066, 26076, 26056, 25436, 25441, 25501, 25506, 25411, 25416, 25456, 25461, 25406, 25446, 25451, 25486, 25466, 25476, 25471, 25481, 25301, 25321, 25361, 25376, 25371, 25366, 25316, 25491, 25351, 25496, 25311, 25336, 25341, 25326, 25381, 25401, 25396, 25391, 25386, 25306, 25331, 25231, 25251, 25246, 25241, 25256, 25236, 26111, 26101, 26121, 26116, 26126, 26106, 25741, 25731, 25751, 25746, 25756, 25736, 25771, 25761, 25781, 25776, 25786, 25766, 25701, 25721, 25716, 25711, 25726, 25706, 28600, 28610, 28605, 28615, 28625, 28620, 28635, 28640, 28630, 28650, 28655, 28645, 28710, 28685, 28680, 28695, 28700, 28670, 28705, 28910, 28905, 28715, 28690, 28720, 28675, 28660, 28665, 28735, 28725, 28730, 28745, 28750, 28740, 28760, 28765, 28755, 28775, 28770, 28780, 28810, 28840, 28835, 28825, 28820, 28815, 28800, 28830, 28805, 28845, 28850, 28855, 28870, 28860, 28865, 28880, 28885, 28875, 25931, 25936, 25941, 25946, 25951, 25956, 25961, 25966, 25071, 25076, 25081, 25086, 25091, 25096, 25651, 25656, 25661, 25666, 25671, 25676, 28790, 28795, 28785	CSA Certificate	2492156	United States English
25101, 25121, 25116, 25111, 25126, 25106, 25131, 25616, 25606, 25151, 25621, 25611, 25591, 25146, 25601, 25596, 25581, 25141, 25586, 25636, 25626, 25646, 25641, 25156, 25631, 25576, 25136, 25001, 25021, 25016, 25011, 25026, 22009, 26026, 26031, 26021, 26016, 26006, 26011, 26046, 26041, 26036, 26001, 25031, 25051, 25046, 25041, 25056, 25036, 25201, 25221, 25216, 25211, 25226, 25206, 26061, 26051, 26071, 26066, 26076, 26056, 25436, 25441, 25501, 25506, 25411, 25416, 25456, 25461, 25406, 25446, 25451, 25486, 25466, 25476, 25471, 25481, 25301, 25321, 25361, 25376, 25371, 25366, 25316, 25491, 25351, 25496, 25311, 25336, 25341, 25326, 25381, 25401, 25396, 25391, 25386, 25306, 25331, 25231, 25251, 25246, 25241, 25256, 25236, 26111, 26101, 26121, 26116, 26126, 26106, 25741, 25731, 25751, 25746, 25756, 25736, 25771, 25761, 25781, 25776, 25786, 25766, 25701, 25721, 25716, 25711, 25726, 25706, 28600, 28610, 28605, 28615, 28625, 28620, 28635, 28640, 28630, 28650, 28655, 28645, 28710, 28685, 28680, 28695, 28700, 28670, 28705, 28910, 28905, 28715, 28690, 28720, 28675, 28660, 28665, 28735, 28725, 28730, 28745, 28750, 28740, 28760, 28765, 28755, 28775, 28770, 28780, 28810, 28840, 28835, 28825, 28820, 28815, 28800, 28830, 28805, 28845, 28850, 28855, 28870, 28860, 28865, 28880, 28885, 28875, 25931, 25936, 25941, 25946, 25951, 25956, 25961, 25966, 25071, 25076, 25081, 25086, 25091, 25096, 25651, 25656, 25661, 25666, 25671, 25676, 28790, 28795, 28785	UL180 Listing for MegaPressG	MH65252	United States English
