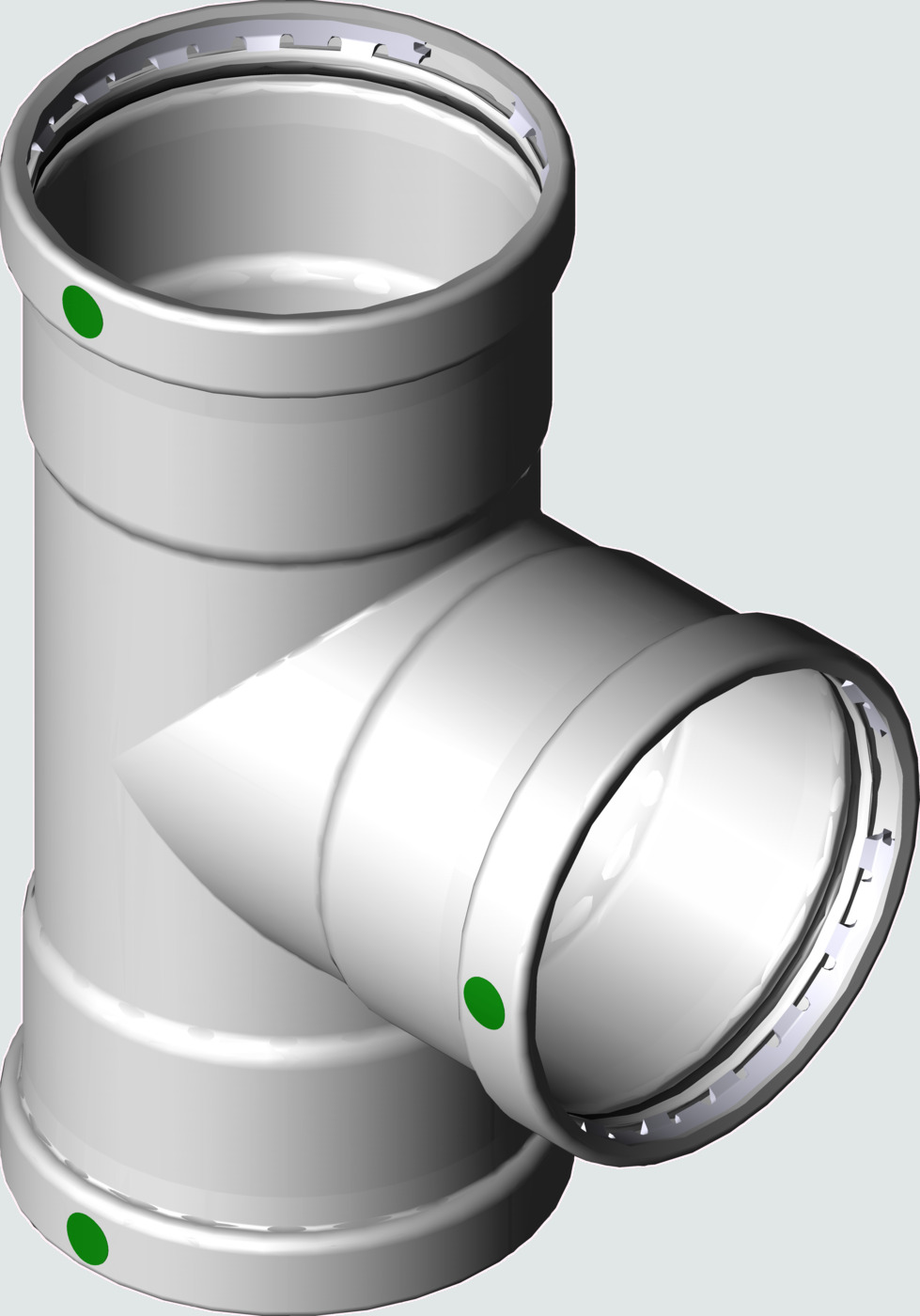

Viega ProPress tee

Viega ProPress tee

Smart Connect Technology

For use with Viega ProPress stainless tubing
316 stainless steel
Press connection

Components

EPDM sealing elements

Model 4018XL

articles

P1	P2	P3	Wt [lb]	DG	Quantity	Part No	amount
P1	P2	P3	Wt [lb]	DG	Quantity	Part No	amount
2½	2½	1½	1.573	9	1	80751	amount.
2½	2½	2	1.739	9	1	80760	amount.
2½	2½	2½	2.056	9	1	80610	amount.
3	3	1½	1.955	9	1	80781	amount.
3	3	2	2.151	9	1	80770	amount.
3	3	3	2.722	9	1	80615	amount.
4	4	2	3.019	9	1	80790	amount.
4	4	4	4.212	9	1	80620	amount.

CAD files

(Please choose)

P1	P2	P3	file size		Part No
P1	P2	P3	file size		Part No
2½	2½	1½	65 KB		80751
2½	2½	2	67 KB		80760
2½	2½	2½	84 KB		80610
3	3	1½	70 KB		80781
3	3	2	69 KB		80770
3	3	3	75 KB		80615
4	4	2	65 KB		80790
4	4	4	83 KB		80620

Z-dimensions

P1	P2	P3	Z1 [mm]	Z2 [mm]	Z3 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	Part No
P1	P2	P3	Z1 [mm]	Z2 [mm]	Z3 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	Part No
2½	2½	1½	33	33	46	76	76	82	80751
2½	2½	2	39	39	45	82	82	86	80760
2½	2½	2½	47	47	48	90	90	91	80610
3	3	1½	34	34	51	84	84	88	80781
3	3	2	40	40	52	90	90	92	80770
3	3	3	53	53	55	103	103	105	80615
4	4	2	41	41	65	101	101	105	80790
4	4	4	66	66	67	126	126	127	80620

certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
82000, 82010, 82025, 82005, 82015, 82020, 82042, 82055, 82050, 80400, 80415, 80425, 80410, 80420, 80405, 80435, 80440, 80430, 80505, 80500, 80515, 80510, 80490, 80495, 80530, 80520, 80525, 80455, 80460, 80470, 80465, 80450, 80445, 80480, 80475, 80485, 80560, 80535, 80550, 80545, 80540, 80555, 80570, 80575, 80565, 80710, 80680, 80720, 80730, 80650, 80690, 80700, 80740, 80750, 80585, 80600, 80580, 80605, 80595, 80640, 80630, 80590, 80615, 80620, 80760, 80770, 80610, 80790, 80751, 80781, 80930, 80820, 80880, 80840, 80900, 80890, 80850, 80970, 80950, 81015, 81010, 81005, 81025, 81030, 81020, 78242, 78247, 78252, 78257, 78262, 78267, 21023, 21028, 21033, 21038, 21043, 21048, 17768, 17778, 17788, 17803, 17818, 17823, 15569, 15549, 15544, 15564, 15559, 80295, 80300, 80305, 80340, 80345, 80350, 81065, 81070, 81075, 80060, 80065, 80070, 80235, 80240, 80245, 80250, 80260, 80385, 80390, 80395, 80064, 80061, 80063, 80010, 80015, 80020, 80025, 80030, 80035, 80040, 80045, 80050, 80055, 80092, 80080, 80085, 80090, 80125, 80120, 80115, 80105, 80100, 80126, 80127, 80165, 80180, 80195, 80200, 80215, 80220, 81035, 81040, 81045, 81050, 81055, 81060, 80265, 80270, 80275, 80280, 80285, 80290, 80310, 80315, 80320, 80325, 80330, 80335, 80160, 80170, 80185, 80205, 80225, 80230, 80355, 80360, 80365, 80370, 80375, 80380, 85995, 85996, 85997	ABS ABS Approval Certificate	21-2079215-PDA-DUP	United States English
