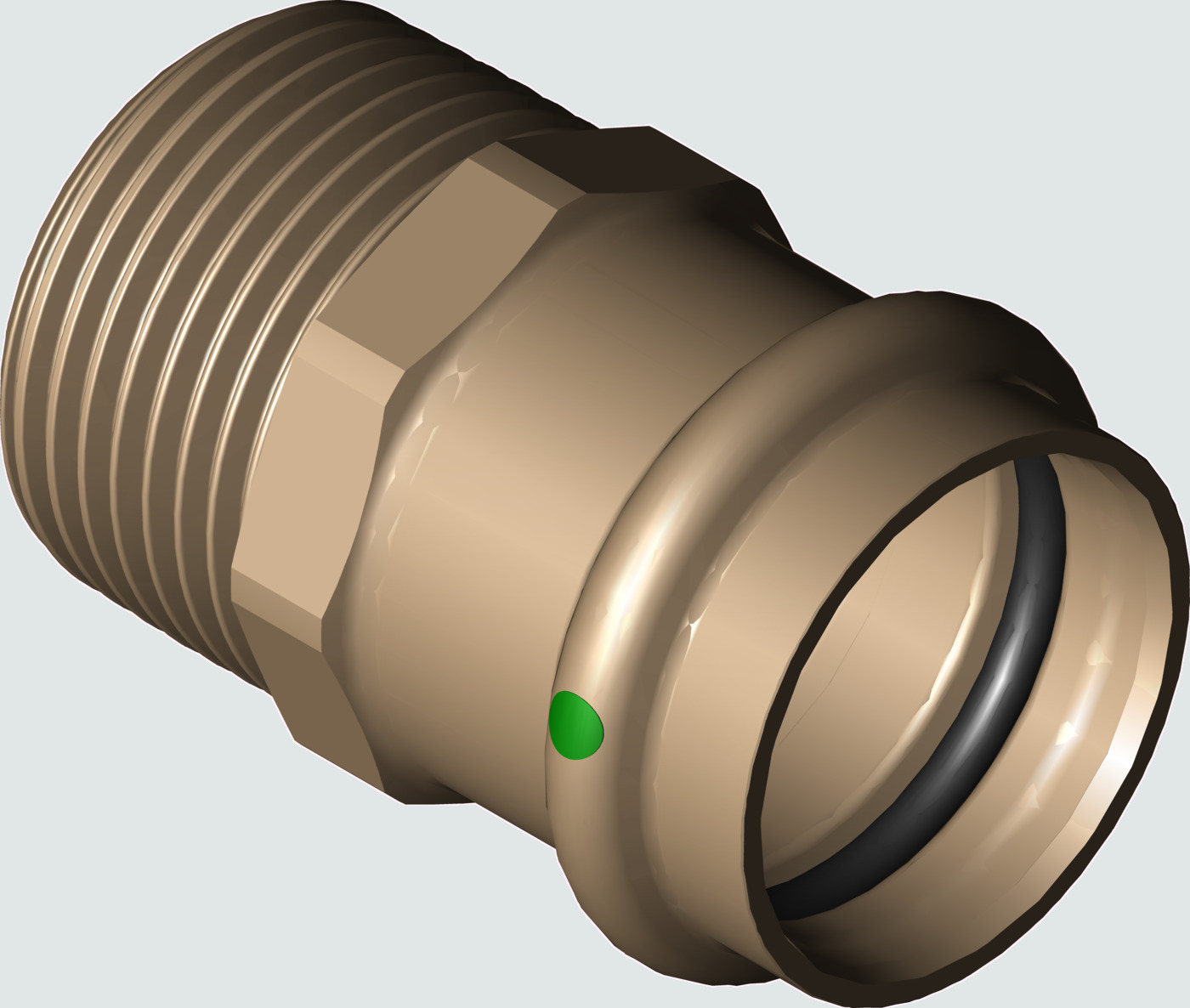

Viega ProPress adapter

Viega ProPress adapter

Smart Connect Technology
Zero Lead

For use with ASTM B88 and B75 tubing
Bronze
Press connection, male pipe thread

Components

EPDM sealing element

Model 2911ZL

Articles

P	MPT	Wt [lb]	DG	Quantity	Part No	amount
P	MPT	Wt [lb]	DG	Quantity	Part No	amount
½	⅜	0.091	8	10	79210	amount.
½	½	0.106	8	10	79215	amount.
½	¾	0.150	8	10	79220	amount.
¾	½	0.146	8	10	79225	amount.
¾	¾	0.155	8	10	79230	amount.
¾	1	0.237	8	10	79235	amount.
1	¾	0.235	8	10	79240	amount.
1	1	0.260	8	10	79245	amount.
1	1¼	0.458	8	10	79250	amount.
1¼	1	0.322	8	1	79255	amount.
1¼	1¼	0.449	8	5	79260	amount.
1¼	1½	0.522	8	1	79265	amount.
1½	1¼	0.597	8	1	79270	amount.
1½	1½	0.548	8	1	79275	amount.
1½	2	0.934	8	1	79280	amount.
2	1½	0.844	8	1	79285	amount.
2	2	0.853	8	1	79290	amount.

CAD files

(Please choose)

P	MPT	file size		Part No
P	MPT	file size		Part No
1¼	1¼	52 KB		79260
1½	1½	51 KB		79275
2	2	52 KB		79290

Z-dimensions

P	MPT	Z [mm]	L [mm]	WS [mm]	Part No
P	MPT	Z [mm]	L [mm]	WS [mm]	Part No
½	⅜	20	41	22	79210
½	½	23	44	22	79215
½	¾	26	47	27	79220
¾	½	26	49	27	79225
¾	¾	26	49	27	79230
¾	1	30	53	34	79235
1	¾	30	53	34	79240
1	1	32	55	34	79245
1	1¼	39	62	43	79250
1¼	1	31	57	39	79255
1¼	1¼	34	60	43	79260
1¼	1½	38	64	50	79265
1½	1¼	34	70	50	79270
1½	1½	33	69	50	79275
1½	2	42	78	62	79280
2	1½	39	79	62	79285
2	2	38	78	62	79290

Certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
79800, 79810, 79805, 79815, 99620, 99626, 99630, 99640, 99660, 99670, 99680, 99690, 99645, 99665, 78800, 78801, 78803, 78242, 78247, 78252, 78257, 78262, 78267, 21023, 21028, 21033, 21038, 21043, 21048, 17768, 17778, 17788, 17803, 17818, 17823, 79520, 79525, 79530, 79535, 79185, 79190, 79195, 79205, 79540, 79545, 79550, 79560, 79565, 79570, 79580, 79585, 79590, 79760, 79765, 79770, 79775, 79780, 79785, 79790, 79795, 79635, 79640, 79595, 15569, 15549, 15544, 15564, 15559, 79125, 79130, 79135, 79140, 79145, 79150, 79155, 79160, 79165, 79170, 79175, 79180, 79210, 79215, 79220, 79225, 79230, 79235, 79240, 79245, 79250, 79255, 79260, 79265, 79270, 79275, 79280, 79285, 79290, 79295, 79300, 79310, 79315, 79320, 79325, 79330, 79335, 79340, 79345, 79350, 79355, 79360, 79365, 79370, 79375, 79380, 79385, 79390, 79395, 79400, 79405, 79410, 79415, 79420, 79425, 79430, 79435, 79440, 79445, 79450, 79455, 79465, 79470, 79475, 79700, 79705, 79710, 79715, 79720, 79725, 79730, 79735, 79740, 79745, 79750, 79755, 79305, 79680, 79685, 79690, 79695, 79850, 79855, 79860, 78057, 78062, 78067, 78072, 78077, 78082, 78087, 78092, 78097, 78102, 78107, 78112, 78117, 14543, 78182, 78187, 78192, 78197, 77027, 77032, 77037, 77042, 77347, 77052, 77057, 77062, 77067, 77072, 77607, 77023, 77028, 77033, 77038, 77043, 77637, 77053, 77058, 77063, 77068, 77073, 77712, 77717, 77722, 22333, 77325, 77330, 78122, 78147, 78152, 78157, 78162, 78167, 77742, 77747, 77377, 77382, 77387, 77392, 77397, 77402, 77407, 77412, 77417, 77422, 77427, 77432, 77437, 77442, 77447, 77452, 77457, 77462, 77467, 77472, 77477, 77482, 77487, 14568, 94757, 94777, 94772, 94767, 94762, 15483, 15503, 77727, 77732, 77737, 15603, 15593, 15588, 15608, 18468, 15493, 15488, 15448, 15458, 15463, 15453, 15518, 15513, 15498, 15508, 15538, 18473, 22228, 22233, 22238, 22248, 22253, 22258, 22268, 22263, 22328, 79005, 79010, 79015, 79020, 79025, 79030, 79660, 20814, 20815, 20817, 20623, 20628, 20633, 20638, 20643, 20648, 20653, 20658, 20663, 20668, 20673, 20678, 20813, 20818, 20798, 20803, 20808, 20683, 20688, 20693, 20698, 20703, 20708, 20713, 20718, 20723, 20728, 20733, 20738, 20743, 20748, 20753, 20758, 20763, 20768, 20773, 20778, 20783, 20823, 20828, 20838, 20833, 20843, 20848, 20853, 20858, 20863, 20873, 20883, 20893, 20819, 20829, 20839, 22278, 22283, 22288, 22293, 22313, 22308, 20685, 20690, 20695, 20700, 20705, 20710, 20715, 20720, 20725, 20730, 20689, 20699, 20704, 20709, 20714, 20724, 20727, 20734, 20739, 20744, 20749, 20754, 20774, 20784, 20794, 20795, 20732, 78047, 78052, 78172, 78177, 77317, 77022, 78802, 78202, 78207, 85995, 85996, 85997, 19786, 24000, 24005, 24010, 24015, 24020, 24025, 24030, 24035, 24040, 23450, 23460, 23470, 22170, 22172, 22176, 22178, 22180, 23443, 23445, 23447, 23449, 23451, 23453, 79920, 79925, 79930, 79935, 79940, 79950, 79923, 79928, 79933, 79938, 79943, 79948, 79970, 79975, 79980, 79035, 79040, 79045, 79050, 79055, 79060, 79875, 79876, 24090, 24095, 79901, 79902, 22074, 22075, 22076	ABS ABS Approval Certificate	21-2079214-PDA-DUP	United States English
