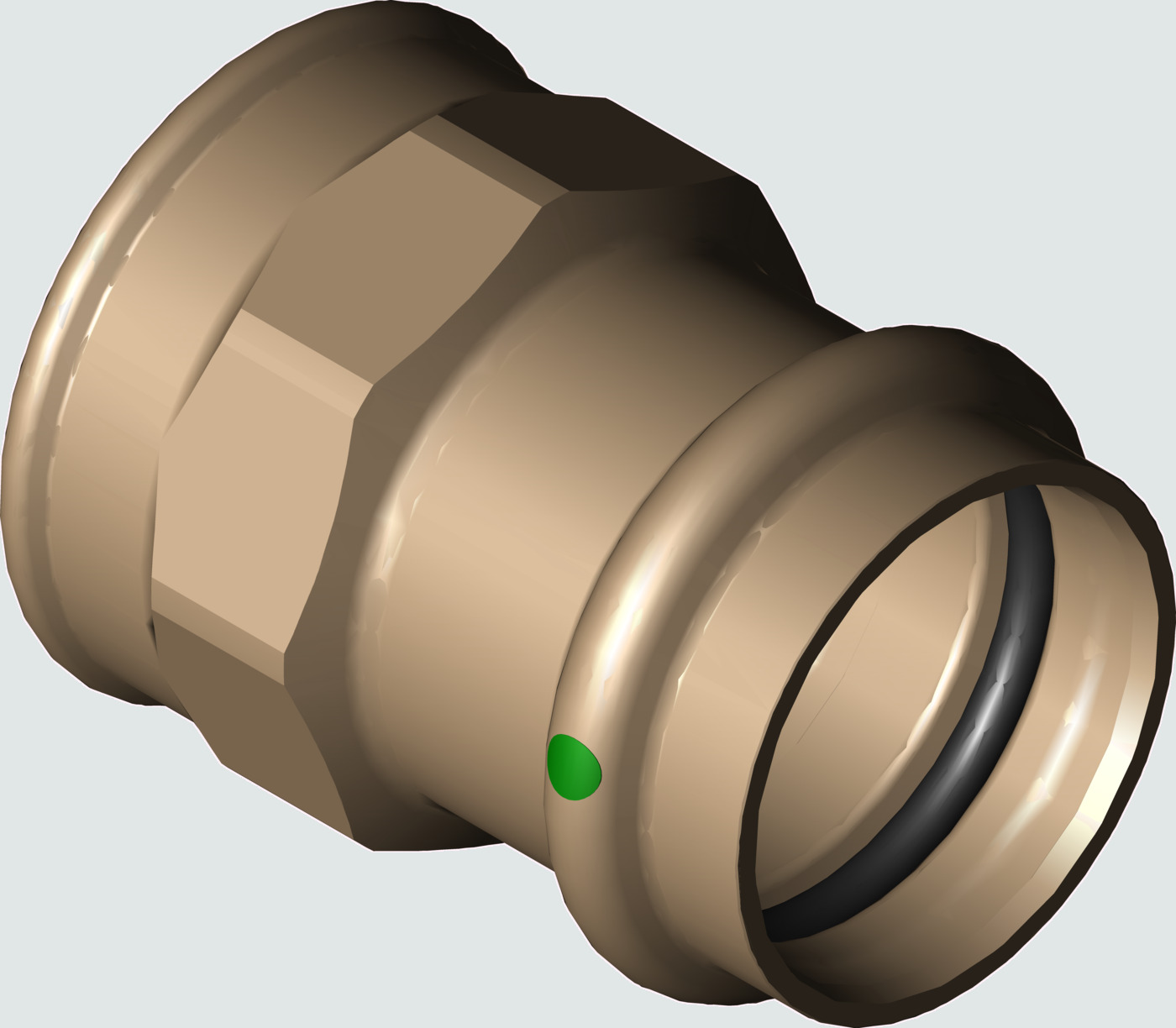

Viega ProPress adapter

Viega ProPress adapter

Smart Connect Technology
Zero Lead

For use with ASTM B88 and B75 tubing
Bronze
Press connection, female pipe thread

Components

EPDM sealing element

Model 2912ZL

Articles

P	FPT	Wt [lb]	DG	Quantity	Part No	amount
P	FPT	Wt [lb]	DG	Quantity	Part No	amount
½	⅜	0.083	8	10	79295	amount.
½	½	0.121	8	10	79300	amount.
½	¾	0.156	8	10	79305	amount.
¾	½	0.147	8	10	79310	amount.
¾	¾	0.176	8	10	79315	amount.
1	½	0.179	8	10	79320	amount.
1	¾	0.208	8	10	79325	amount.
1	1	0.277	8	10	79330	amount.
1	1¼	0.370	8	10	79335	amount.
1¼	½	0.220	8	1	79340	amount.
1¼	1	0.302	8	1	79345	amount.
1¼	1¼	0.367	8	5	79350	amount.
1¼	1½	0.466	8	1	79355	amount.
1½	1¼	0.465	8	1	79360	amount.
1½	1½	0.560	8	1	79365	amount.
2	2	0.781	8	1	79370	amount.

Z-dimensions

P	FPT	Z [mm]	L [mm]	WS [mm]	Part No
P	FPT	Z [mm]	L [mm]	WS [mm]	Part No
½	⅜	5	36	21	79295
½	½	6	41	25	79300
½	¾	7	42	31	79305
¾	½	8	45	26	79310
¾	¾	9	46	31	79315
1	½	10	47	25	79320
1	¾	10	47	33	79325
1	1	11	51	38	79330
1	1¼	13	53	47	79335
1¼	½	9	49	26	79340
1¼	1	6	49	39	79345
1¼	1¼	9	52	47	79350
1¼	1½	11	54	53	79355
1½	1¼	7	60	47	79360
1½	1½	9	62	53	79365
2	2	10	68	67	79370

Certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
79800, 79810, 79805, 79815, 99620, 99626, 99630, 99640, 99660, 99670, 99680, 99690, 99645, 99665, 78800, 78801, 78803, 78242, 78247, 78252, 78257, 78262, 78267, 21023, 21028, 21033, 21038, 21043, 21048, 17768, 17778, 17788, 17803, 17818, 17823, 79520, 79525, 79530, 79535, 79185, 79190, 79195, 79205, 79540, 79545, 79550, 79560, 79565, 79570, 79580, 79585, 79590, 79760, 79765, 79770, 79775, 79780, 79785, 79790, 79795, 79635, 79640, 79595, 15569, 15549, 15544, 15564, 15559, 79125, 79130, 79135, 79140, 79145, 79150, 79155, 79160, 79165, 79170, 79175, 79180, 79210, 79215, 79220, 79225, 79230, 79235, 79240, 79245, 79250, 79255, 79260, 79265, 79270, 79275, 79280, 79285, 79290, 79295, 79300, 79310, 79315, 79320, 79325, 79330, 79335, 79340, 79345, 79350, 79355, 79360, 79365, 79370, 79375, 79380, 79385, 79390, 79395, 79400, 79405, 79410, 79415, 79420, 79425, 79430, 79435, 79440, 79445, 79450, 79455, 79465, 79470, 79475, 79700, 79705, 79710, 79715, 79720, 79725, 79730, 79735, 79740, 79745, 79750, 79755, 79305, 79680, 79685, 79690, 79695, 79850, 79855, 79860, 78057, 78062, 78067, 78072, 78077, 78082, 78087, 78092, 78097, 78102, 78107, 78112, 78117, 14543, 78182, 78187, 78192, 78197, 77027, 77032, 77037, 77042, 77347, 77052, 77057, 77062, 77067, 77072, 77607, 77023, 77028, 77033, 77038, 77043, 77637, 77053, 77058, 77063, 77068, 77073, 77712, 77717, 77722, 22333, 77325, 77330, 78122, 78147, 78152, 78157, 78162, 78167, 77742, 77747, 77377, 77382, 77387, 77392, 77397, 77402, 77407, 77412, 77417, 77422, 77427, 77432, 77437, 77442, 77447, 77452, 77457, 77462, 77467, 77472, 77477, 77482, 77487, 14568, 94757, 94777, 94772, 94767, 94762, 15483, 15503, 77727, 77732, 77737, 15603, 15593, 15588, 15608, 18468, 15493, 15488, 15448, 15458, 15463, 15453, 15518, 15513, 15498, 15508, 15538, 18473, 22228, 22233, 22238, 22248, 22253, 22258, 22268, 22263, 22328, 79005, 79010, 79015, 79020, 79025, 79030, 79660, 20814, 20815, 20817, 20623, 20628, 20633, 20638, 20643, 20648, 20653, 20658, 20663, 20668, 20673, 20678, 20813, 20818, 20798, 20803, 20808, 20683, 20688, 20693, 20698, 20703, 20708, 20713, 20718, 20723, 20728, 20733, 20738, 20743, 20748, 20753, 20758, 20763, 20768, 20773, 20778, 20783, 20823, 20828, 20838, 20833, 20843, 20848, 20853, 20858, 20863, 20873, 20883, 20893, 20819, 20829, 20839, 22278, 22283, 22288, 22293, 22313, 22308, 20685, 20690, 20695, 20700, 20705, 20710, 20715, 20720, 20725, 20730, 20689, 20699, 20709, 20714, 20724, 20727, 20734, 20739, 20744, 20749, 20754, 20774, 20784, 20794, 20795, 20732, 78047, 78052, 78172, 78177, 77317, 77022, 78802, 78202, 78207, 85995, 85996, 85997, 19786, 24000, 24005, 24010, 24015, 24020, 24025, 24030, 24035, 24040, 23450, 23460, 23470, 22170, 22172, 22176, 22178, 22180, 23443, 23445, 23447, 23449, 23451, 23453, 79920, 79925, 79930, 79935, 79940, 79950, 79923, 79928, 79933, 79938, 79943, 79948, 79970, 79975, 79980, 79035, 79040, 79045, 79050, 79055, 79060, 79875, 79876, 24090, 24095, 79901, 79902, 22074, 22075, 22076	ABS ABS Approval Certificate	21-2079214-PDA-DUP	United States English
