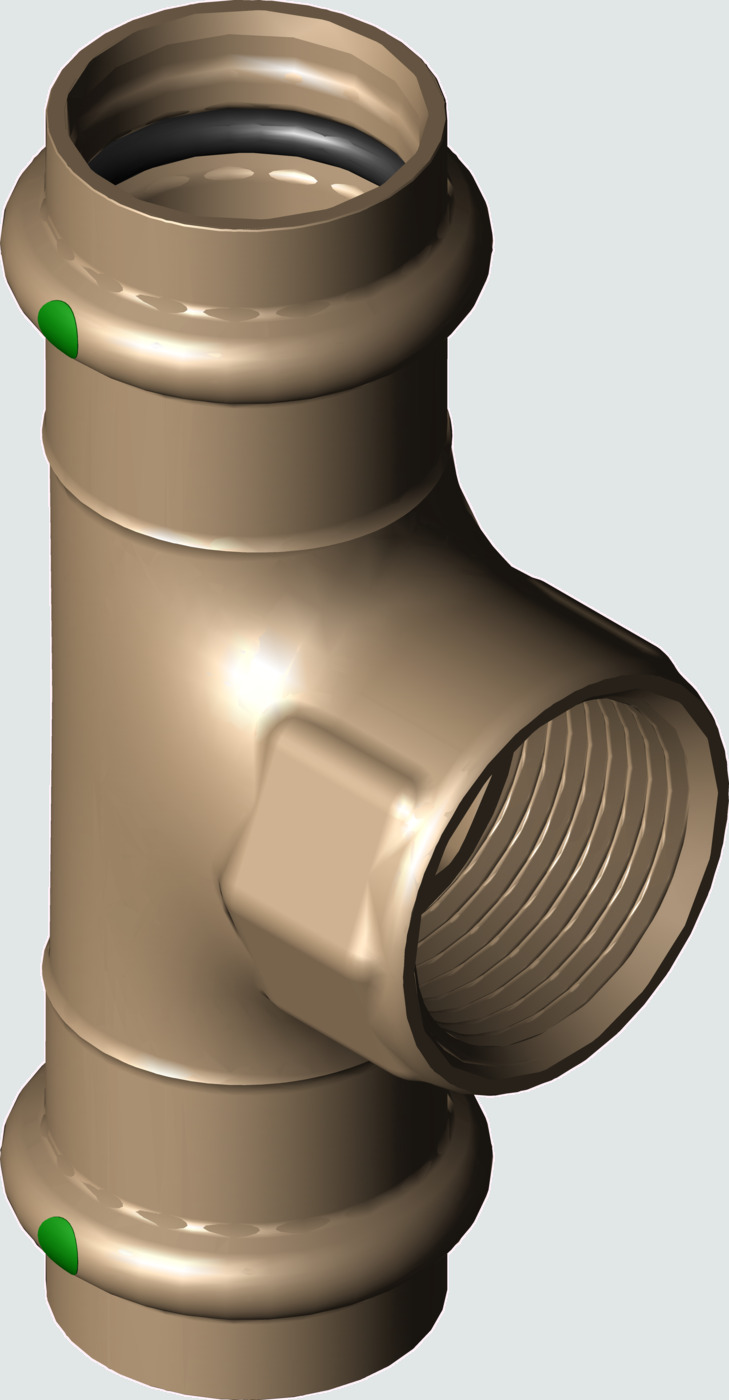

Viega ProPress tee

Viega ProPress tee

Smart Connect Technology
Zero Lead

For use with ASTM B88 and B75 tubing
Bronze
Press connection, female pipe thread

Components

EPDM sealing elements

Model 2917.2ZL

Articles

P1	P2	FPT	Wt [lb]	DG	Quantity	Part No	amount
P1	P2	FPT	Wt [lb]	DG	Quantity	Part No	amount
½	½	½	0.237	8	5	79580	amount.
¾	¾	¼	0.253	8	5	79585	amount.
¾	¾	½	0.307	8	5	79590	amount.
¾	¾	¾	0.348	8	5	79595	amount.
1	1	½	0.414	8	5	79760	amount.
1	1	¾	0.492	8	5	79765	amount.
1¼	1¼	½	0.529	8	1	79770	amount.
1¼	1¼	¾	0.625	8	1	79775	amount.
1½	1½	½	0.809	8	1	79780	amount.
1½	1½	¾	0.900	8	1	79785	amount.
2	2	½	1.018	8	1	79790	amount.
2	2	¾	1.300	8	1	79795	amount.

CAD files

(Please choose)

P1	P2	FPT	file size		Part No
P1	P2	FPT	file size		Part No
¾	¾	¾	164 KB		79595

Z-dimensions

P1	P2	FPT	Z1 [mm]	Z2 [mm]	Z3 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	WS [mm]	Part No
P1	P2	FPT	Z1 [mm]	Z2 [mm]	Z3 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	WS [mm]	Part No
½	½	½	20	20	17	41	41	33	25	79580
¾	¾	¼	17	17	20	40	40	30	18	79585
¾	¾	½	20	20	22	43	43	36	25	79590
¾	¾	¾	23	23	15	46	46	29	31	79595
1	1	½	20	20	26	43	43	40	25	79760
1	1	¾	23	23	27	46	46	41	31	79765
1¼	1¼	½	21	21	29	47	47	43	25	79770
1¼	1¼	¾	24	24	30	50	50	44	31	79775
1½	1½	½	22	22	31	58	58	45	25	79780
1½	1½	¾	24	24	33	60	60	47	31	79785
2	2	½	25	25	40	65	65	54	25	79790
2	2	¾	27	27	42	67	67	56	31	79795

Certificates

Article number	Certificate	Certificate	Country Language
Article number	Certificate	Certificate	Country Language
79800, 79810, 79805, 79815, 99620, 99626, 99630, 99640, 99660, 99670, 99680, 99690, 99645, 99665, 78800, 78801, 78803, 78242, 78247, 78252, 78257, 78262, 78267, 21023, 21028, 21033, 21038, 21043, 21048, 17768, 17778, 17788, 17803, 17818, 17823, 79520, 79525, 79530, 79535, 79185, 79190, 79195, 79205, 79540, 79545, 79550, 79560, 79565, 79570, 79580, 79585, 79590, 79760, 79765, 79770, 79775, 79780, 79785, 79790, 79795, 79635, 79640, 79595, 15569, 15549, 15544, 15564, 15559, 79125, 79130, 79135, 79140, 79145, 79150, 79155, 79160, 79165, 79170, 79175, 79180, 79210, 79215, 79220, 79225, 79230, 79235, 79240, 79245, 79250, 79255, 79260, 79265, 79270, 79275, 79280, 79285, 79290, 79295, 79300, 79310, 79315, 79320, 79325, 79330, 79335, 79340, 79345, 79350, 79355, 79360, 79365, 79370, 79375, 79380, 79385, 79390, 79395, 79400, 79405, 79410, 79415, 79420, 79425, 79430, 79435, 79440, 79445, 79450, 79455, 79465, 79470, 79475, 79700, 79705, 79710, 79715, 79720, 79725, 79730, 79735, 79740, 79745, 79750, 79755, 79305, 79680, 79685, 79690, 79695, 79850, 79855, 79860, 78057, 78062, 78067, 78072, 78077, 78082, 78087, 78092, 78097, 78102, 78107, 78112, 78117, 14543, 78182, 78187, 78192, 78197, 77027, 77032, 77037, 77042, 77347, 77052, 77057, 77062, 77067, 77072, 77607, 77023, 77028, 77033, 77038, 77043, 77637, 77053, 77058, 77063, 77068, 77073, 77712, 77717, 77722, 22333, 77325, 77330, 78122, 78147, 78152, 78157, 78162, 78167, 77742, 77747, 77377, 77382, 77387, 77392, 77397, 77402, 77407, 77412, 77417, 77422, 77427, 77432, 77437, 77442, 77447, 77452, 77457, 77462, 77467, 77472, 77477, 77482, 77487, 14568, 94757, 94777, 94772, 94767, 94762, 15483, 15503, 77727, 77732, 77737, 15603, 15593, 15588, 15608, 18468, 15493, 15488, 15448, 15458, 15463, 15453, 15518, 15513, 15498, 15508, 15538, 18473, 22228, 22233, 22238, 22248, 22253, 22258, 22268, 22263, 22328, 79005, 79010, 79015, 79020, 79025, 79030, 79660, 20814, 20815, 20817, 20623, 20628, 20633, 20638, 20643, 20648, 20653, 20658, 20663, 20668, 20673, 20678, 20813, 20818, 20798, 20803, 20808, 20683, 20688, 20693, 20698, 20703, 20708, 20713, 20718, 20723, 20728, 20733, 20738, 20743, 20748, 20753, 20758, 20763, 20768, 20773, 20778, 20783, 20823, 20828, 20838, 20833, 20843, 20848, 20853, 20858, 20863, 20873, 20883, 20893, 20819, 20829, 20839, 22278, 22283, 22288, 22293, 22313, 22308, 20685, 20690, 20695, 20700, 20705, 20710, 20715, 20720, 20725, 20730, 20689, 20699, 20704, 20709, 20714, 20724, 20727, 20734, 20739, 20744, 20749, 20754, 20774, 20784, 20794, 20795, 20732, 78047, 78052, 78172, 78177, 77317, 77022, 78802, 78202, 78207, 85995, 85996, 85997, 19786, 24000, 24005, 24010, 24015, 24020, 24025, 24030, 24035, 24040, 23450, 23460, 23470, 22170, 22172, 22176, 22178, 22180, 23443, 23445, 23447, 23449, 23451, 23453, 79920, 79925, 79930, 79935, 79940, 79950, 79923, 79928, 79933, 79938, 79943, 79948, 79970, 79975, 79980, 79035, 79040, 79045, 79050, 79055, 79060, 79875, 79876, 24090, 24095, 79901, 79902, 22074, 22075, 22076	ABS ABS Approval Certificate	21-2079214-PDA-DUP	United States English
