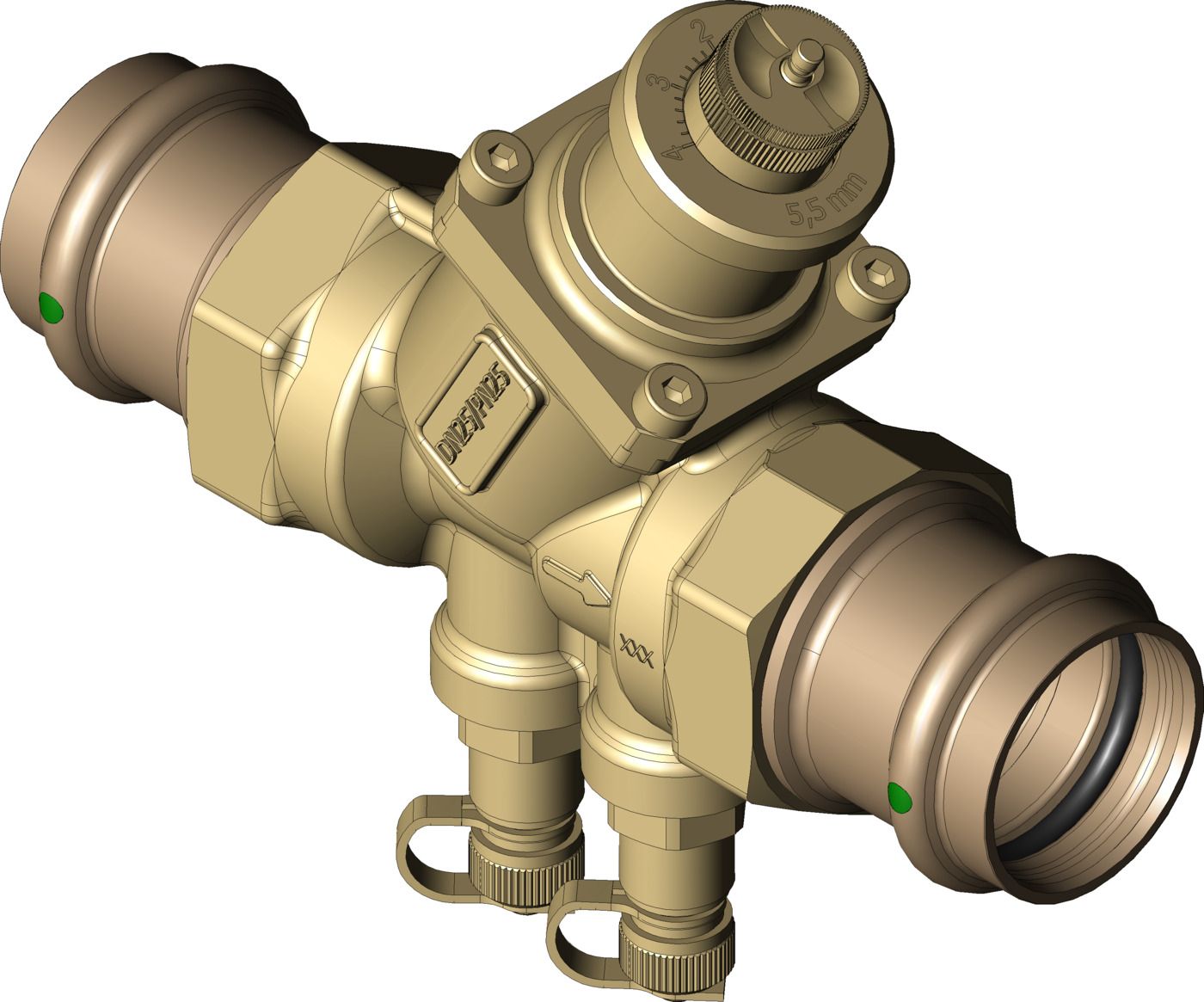

Viega ProPress balancing valve

Viega ProPress balancing valve

Pressure independent
Smart Connect Technology
  • Not suitable for potable water installations
  • Brass, ductile iron
  • Press connection, bronze press ends

Components

Pressure independent balancing and control valve, EPDM sealing elements, pressure/temperature test port

Model 2987.72

Article

Valve Body P1 P2 Wt [lb] DG Quantity Part No amount
brass ½ ½ 1.344 8 1 89925
brass ¾ ¾ 1.455 8 1 89930
brass 1 1 1.807 8 1 89935
brass 1¼ 1¼ 3.438 8 1 89940
ductile iron 1½ 1½ 7.229 8 1 89945
ductile iron 2 2 9.433 8 1 89950

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

Valve Body P1 P2 file size Part No
brass ½ ½ 1 MB 89925
brass ¾ ¾ 1 MB 89930
brass 1 1 1 MB 89935
brass 1¼ 1¼ 1 MB 89940
ductile iron 1½ 1½ 1 MB 89945

Z-dimensions

P1 P2 Z1 [mm] Z2 [mm] L [mm] H1 [mm] H2 [mm] WS [mm] Part No
½ ½ 10 40 61 69 59 27 89925
¾ ¾ 10 45 68 64 59 32 89930
1 1 10 49 72 73 62 39 89935
1¼ 1¼ 14 58 84 88 70 46 89940
1½ 1½ 21 72 108 146 73 56 89945
2 2 21 75 115 146 79 70 89950

WS [mm] = wrench size
