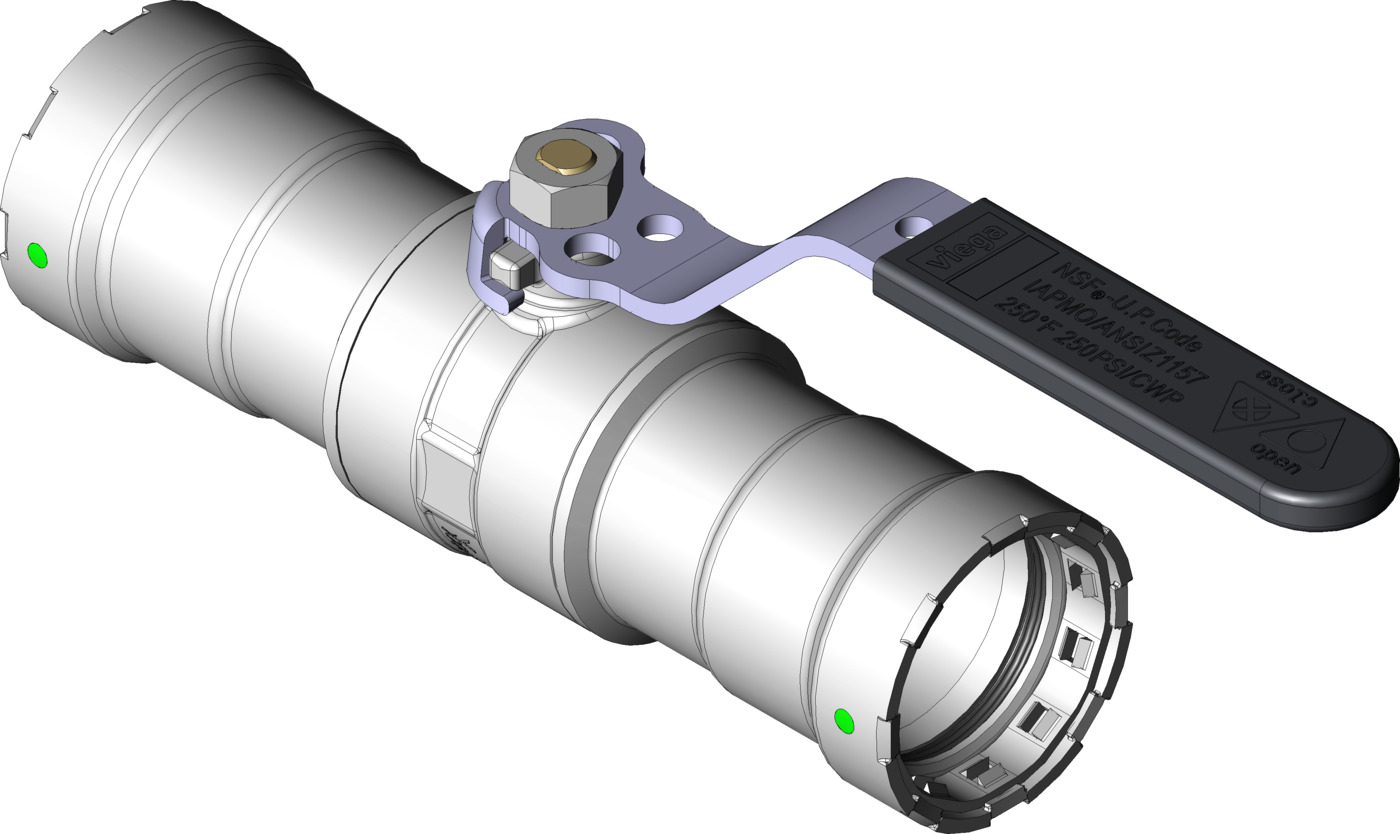

Viega MegaPress ball valve
Viega MegaPress ball valve
Smart Connect Technology
Model 4870
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Not suitable for fuel gas application
- Carbon steel
Components
Stainless steel ball, EPDM sealing elements, lockable metal handleModel 4870
articles
| P | Wt [lb] | DG | Quantity | Part No | amount |
|---|---|---|---|---|---|
| P | Wt [lb] | DG | Quantity | Part No | amount |
| ½ | 0.807 | 12 | 1 | 28915 |
amount.
|
| ¾ | 1.115 | 12 | 1 | 28920 |
amount.
|
| 1 | 1.750 | 12 | 1 | 28925 |
amount.
|
| 1¼ | 2.759 | 12 | 1 | 28930 |
amount.
|
| 1½ | 3.778 | 12 | 1 | 28935 |
amount.
|
| 2 | 5.847 | 12 | 1 | 28940 |
amount.
|
CAD files
Z-dimensions
| P | Z1 [mm] | Z2 [mm] | L1 [mm] | L2 [mm] | L3 [mm] | H1 [mm] | H2 [mm] | Part No |
|---|---|---|---|---|---|---|---|---|
| P | Z1 [mm] | Z2 [mm] | L1 [mm] | L2 [mm] | L3 [mm] | H1 [mm] | H2 [mm] | Part No |
| ½ | 39 | 39 | 67 | 67 | 116 | 51 | 16 | 28915 |
| ¾ | 42 | 42 | 71 | 71 | 116 | 53 | 19 | 28920 |
| 1 | 46 | 46 | 80 | 80 | 147 | 63 | 22 | 28925 |
| 1¼ | 50 | 50 | 96 | 96 | 147 | 69 | 29 | 28930 |
| 1½ | 54 | 54 | 102 | 102 | 156 | 77 | 35 | 28935 |
| 2 | 61 | 61 | 111 | 111 | 156 | 84 | 42 | 28940 |
