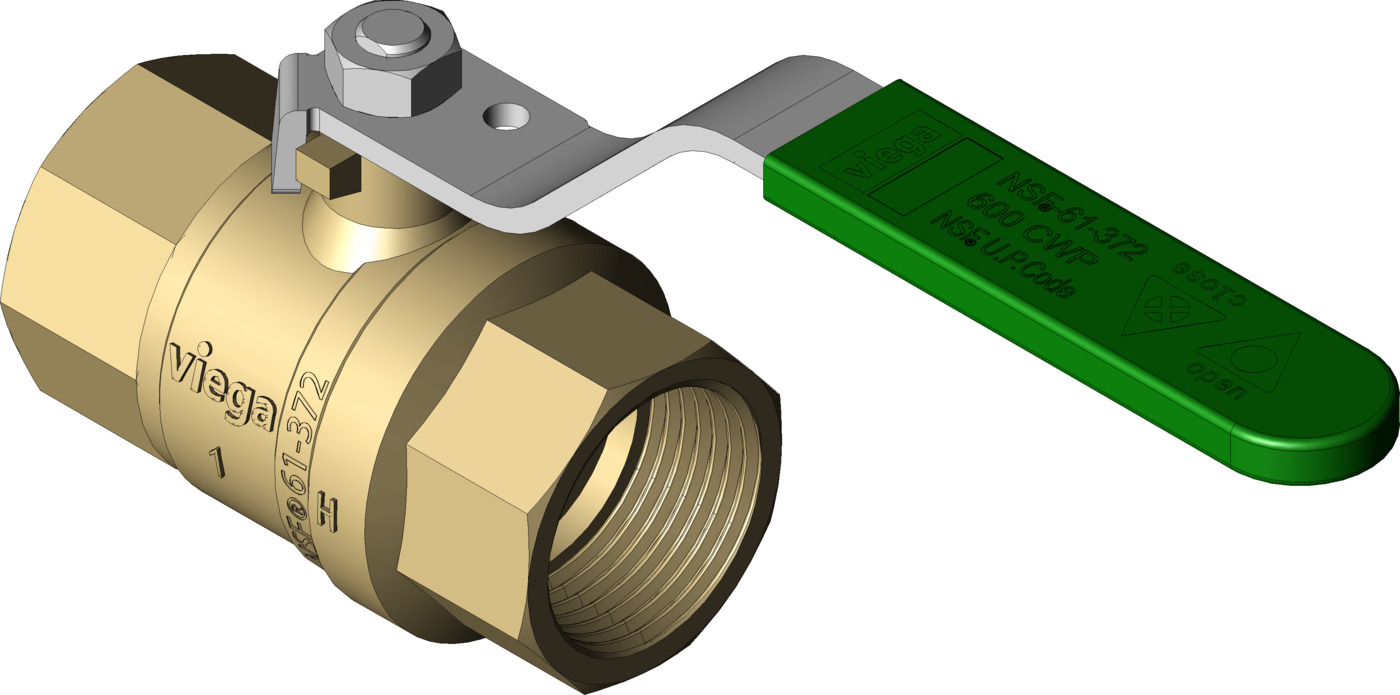

Viega ProPress ball valve

Viega ProPress ball valve

Zero Lead
  • For potable water installations
  • Not suitable for fuel gas application
  • Brass
  • Female pipe thread
  • Full port

Components

EPDM sealing elements, stainless steel ball

Model 2800ZL

Article

P1 P2 Wt [lb] DG Quantity Part No amount
½ ½ 0.529 8 1 87920
¾ ¾ 0.661 8 1 87925
1 1 1.146 8 1 87930
1¼ 1¼ 1.785 8 1 87935
1½ 1½ 2.182 8 1 87940
2 2 3.218 8 1 87945

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P1 P2 file size Part No
½ ½ 474 KB 87920
¾ ¾ 474 KB 87925
1 1 519 KB 87930
1¼ 1¼ 544 KB 87935
2 2 590 KB 87945

Z-dimensions

P1 P2 Z1 [mm] Z2 [mm] L1 [mm] L2 [mm] L3 [mm] H1 [mm] H2 [mm] Part No
½ ½ 15 15 29 29 117 52 16 87920
¾ ¾ 18 18 33 33 117 55 19 87925
1 1 22 22 39 39 147 66 23 87930
1¼ 1¼ 28 28 45 45 147 72 30 87935
1½ 1½ 32 32 49 49 156 79 36 87940
2 2 37 37 55 55 156 87 44 87945
