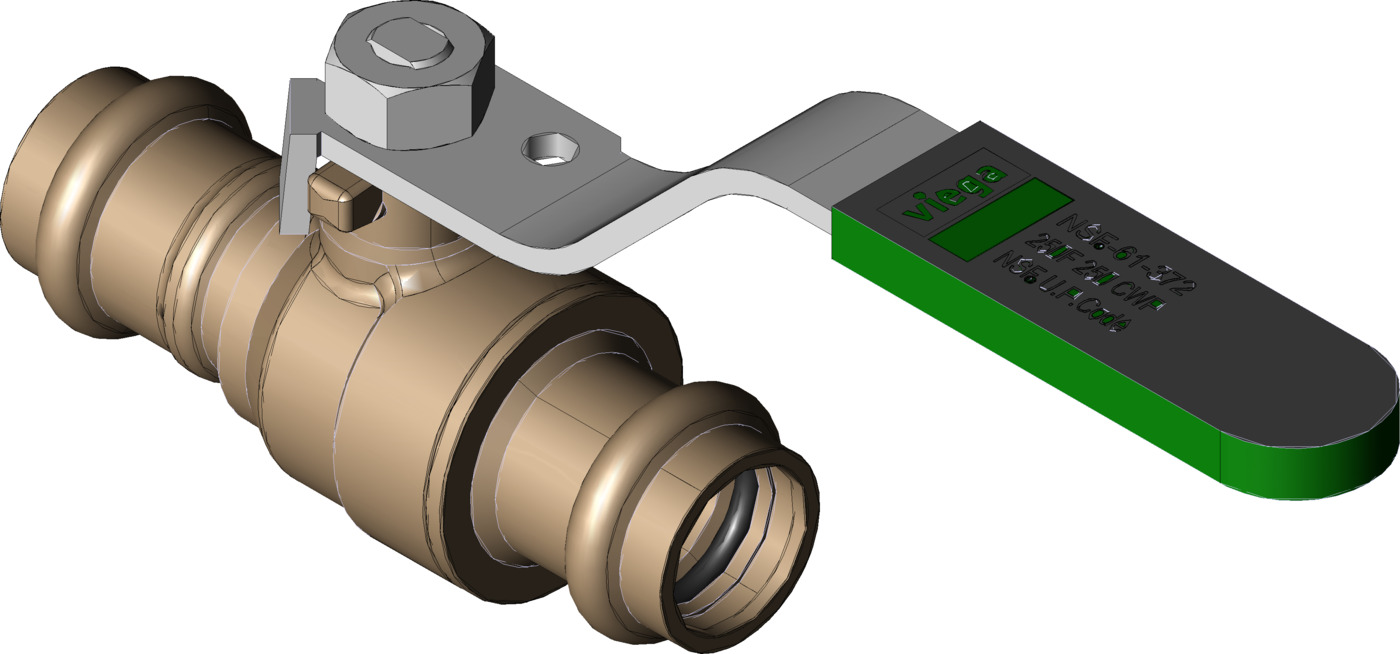

Viega ProPress ball valve

Viega ProPress ball valve

Smart Connect Technology
Zero Lead
  • For potable water installations
  • Bronze
  • Press connection
  • Full port

Components

Stainless steel ball, EPDM sealing elements, non-​lockable metal handle

Model 2971.1ZL

Articles

P1 P2 Wt [lb] DG Quantity Part No amount
½ ½ 0.463 8 1 79920
¾ ¾ 0.637 8 1 79925
1 1 1.027 8 1 79930
1¼ 1¼ 1.512 8 1 79935
1½ 1½ 2.438 8 1 79940
2 2 3.910 8 1 79950

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P1 P2 file size Part No
½ ½ 314 KB 79920
¾ ¾ 305 KB 79925
1 1 342 KB 79930
1¼ 1¼ 389 KB 79935
1½ 1½ 318 KB 79940
2 2 332 KB 79950

Z-dimensions

P1 P2 Z1 [mm] Z2 [mm] L1 [mm] L2 [mm] L3 [mm] H1 [mm] H2 [mm] Part No
½ ½ 19 19 40 40 116 51 15 79920
¾ ¾ 22 22 45 45 116 53 18 79925
1 1 27 26 50 49 147 63 22 79930
1¼ 1¼ 29 29 55 55 147 68 28 79935
1½ 1½ 32 37 68 73 156 77 34 79940
2 2 37 44 78 84 156 84 42 79950
