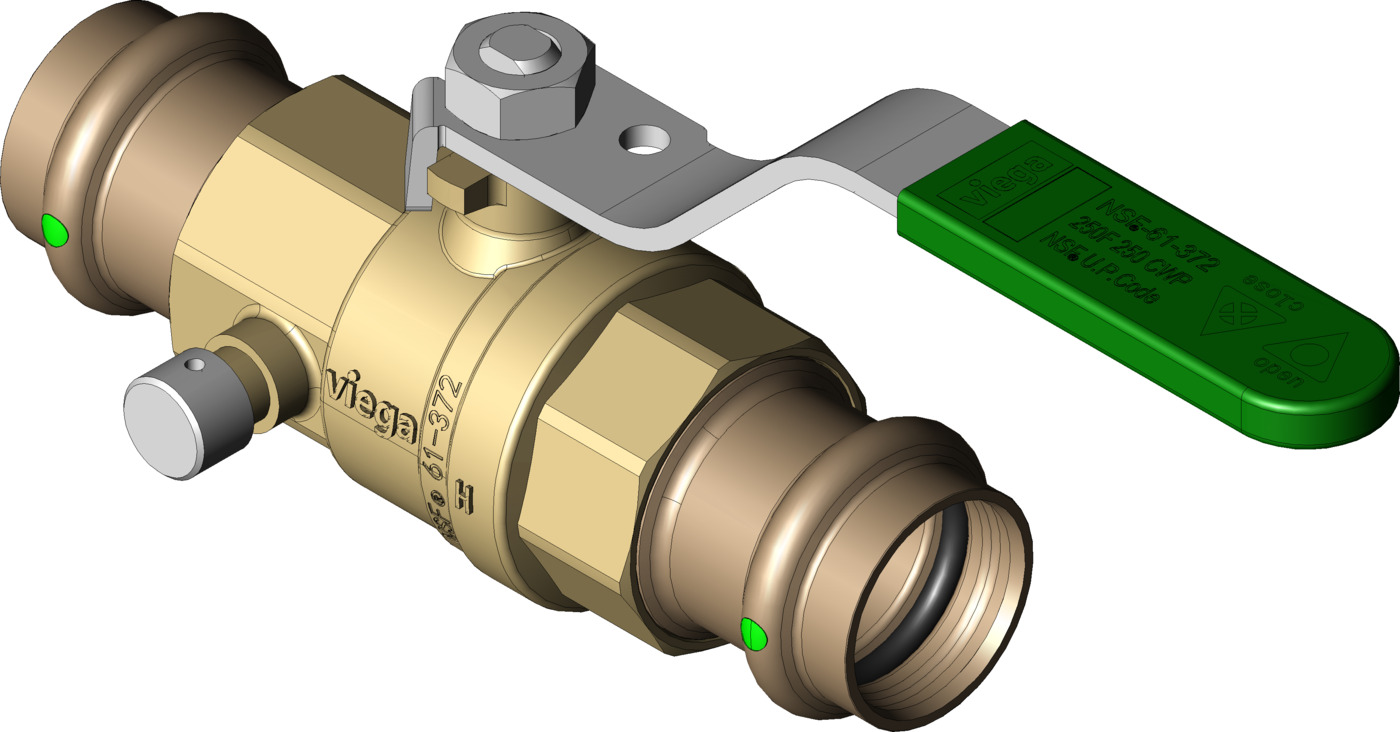

Viega ProPress ball valve

Smart Connect Technology
Zero Lead

EPDM sealing elements, non-lockable metal handle, stainless steel ball

Model 2975.3ZL

Articles

P1	P2	Wt [lb]	DG	Quantity	Part No	amount
P1	P2	Wt [lb]	DG	Quantity	Part No	amount
½	½	0.639		1	87845	amount.
¾	¾	0.904		1	87850	amount.

P1	P2	file size	Part No
P1	P2	file size	Part No
½	½	440 KB	87845
¾	¾	429 KB	87850

P1	P2	Z1 [mm]	Z2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	H1 [mm]	H2 [mm]	WS1 [mm]	WS2 [mm]	Part No
P1	P2	Z1 [mm]	Z2 [mm]	L1 [mm]	L2 [mm]	L3 [mm]	H1 [mm]	H2 [mm]	WS1 [mm]	WS2 [mm]	Part No
½	½	30	29	51	50	117	52	16	26	26	87845
¾	¾	35	34	58	57	117	56	19	32	32	87850
