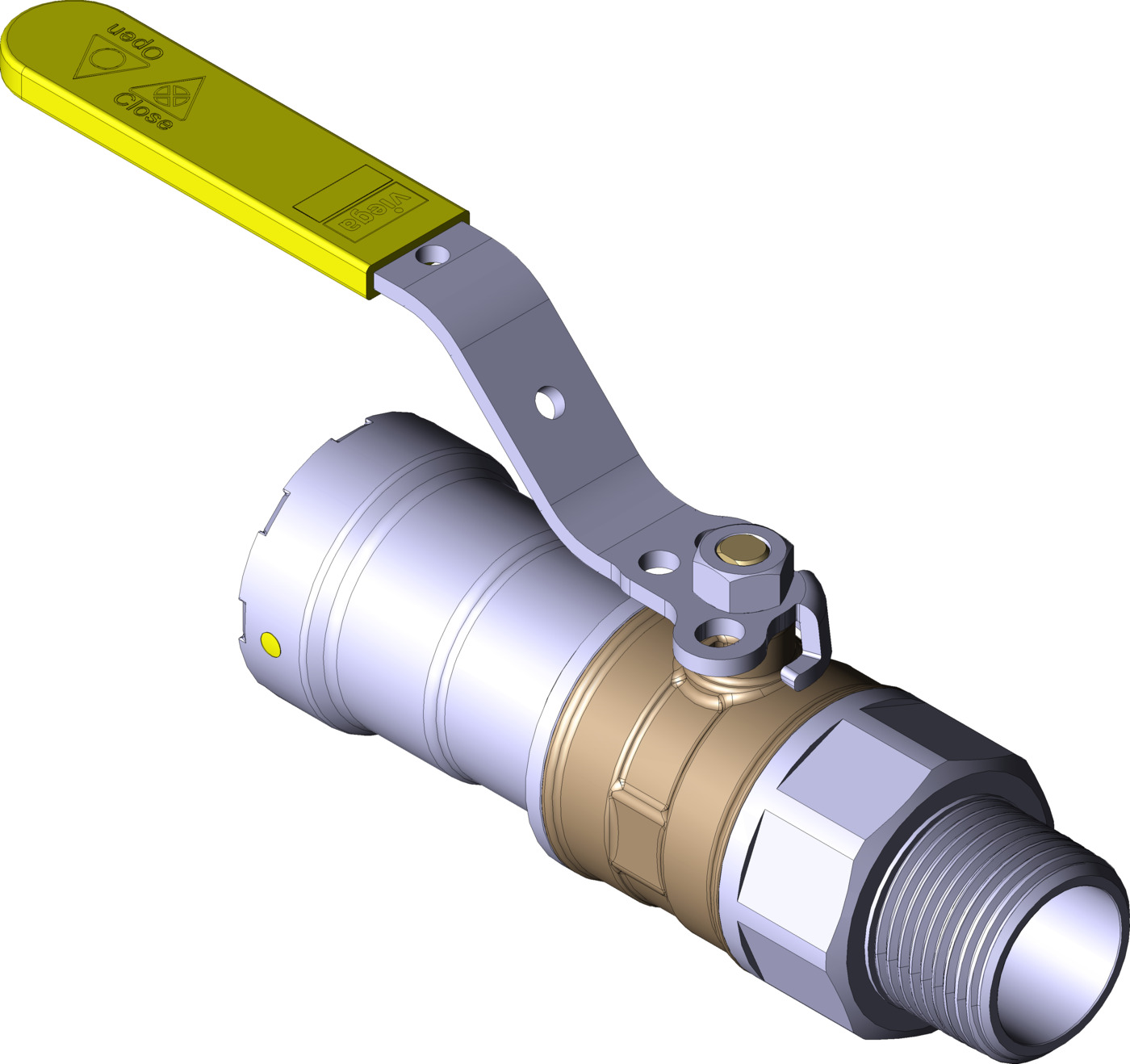

Viega MegaPressG ball valve

Viega MegaPressG ball valve

Smart Connect Technology
  • For use with Sch. 5 to Sch. 40 carbon steel pipe
  • Bronze, carbon steel
  • Press connection, male pipe thread

Components

HNBR sealing element, lockable metal handle

Model 6675.2

Articles

P MPT Wt [lb] DG Quantity Part No amount
½ ½ 0.732 12 1 30660
¾ ¾ 0.987 12 1 30665
1 1 1.737 12 1 30670
1¼ 1¼ 2.557 12 1 30675
1½ 1½ 3.449 12 1 30680
2 2 5.400 12 1 30685

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P MPT file size Part No
½ ½ 254 KB 30660
¾ ¾ 292 KB 30665
1 1 212 KB 30670
1¼ 1¼ 505 KB 30675
1½ 1½ 448 KB 30680
2 2 331 KB 30685

Z-dimensions

P MPT Z [mm] L1 [mm] L2 [mm] L3 [mm] H1 [mm] H2 [mm] WS [mm] Part No
½ ½ 39 46 67 116 51 16 30 30660
¾ ¾ 42 47 71 116 53 20 37 30665
1 1 46 64 80 147 63 23 44 30670
1¼ 1¼ 50 65 96 147 68 29 49 30675
1½ 1½ 54 68 102 156 77 35 54 30680
2 2 60 74 111 156 84 42 70 30685

WS [mm] = wrench size

Certificates

Certificate Certificate Country
Language
CSA Certificate
 80066407 United States
English
