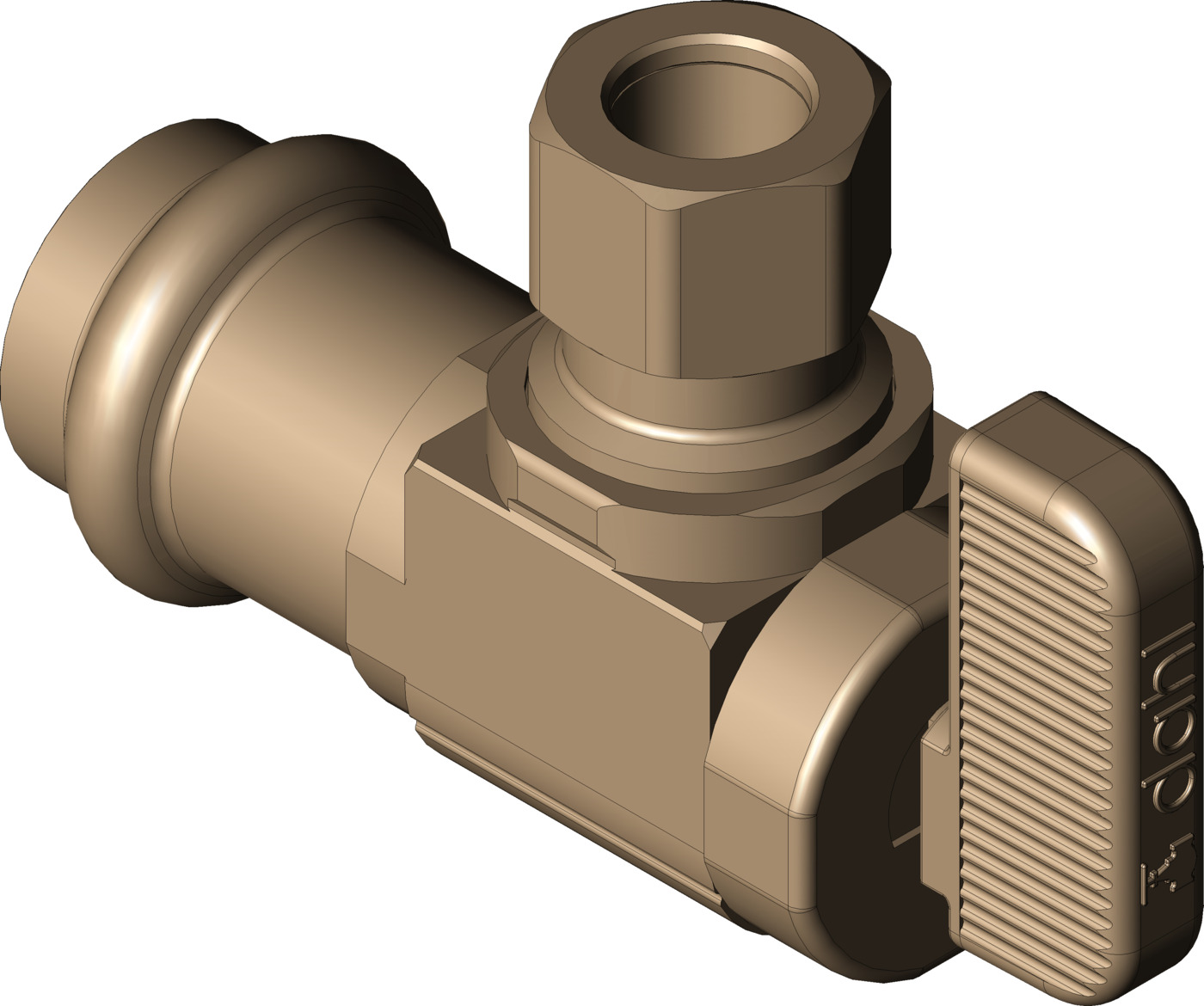

Viega ProPress stop valve

Viega ProPress stop valve

Angled
Zero Lead
  • For potable water installations
  • Not suitable for fuel gas application
  • Nickel-​plated brass
  • ProPress press connection, compression
  • ¼ turn

Note

¼" CTS also called ⅜" OD compression

Model 2942.3ZL

Article

P CTS Wt [lb] DG Quantity Part No amount
½ ⅜ 0.309 8 10 89995

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P CTS file size Part No
½ ⅜ 121 KB 89995

Z-dimensions

P CTS Z [mm] L1 [mm] L2 [mm] H1 [mm] H2 [mm] WS [mm] Part No
½ ⅜ 17 38 31 31 12 16 89995

WS [mm] = wrench size
