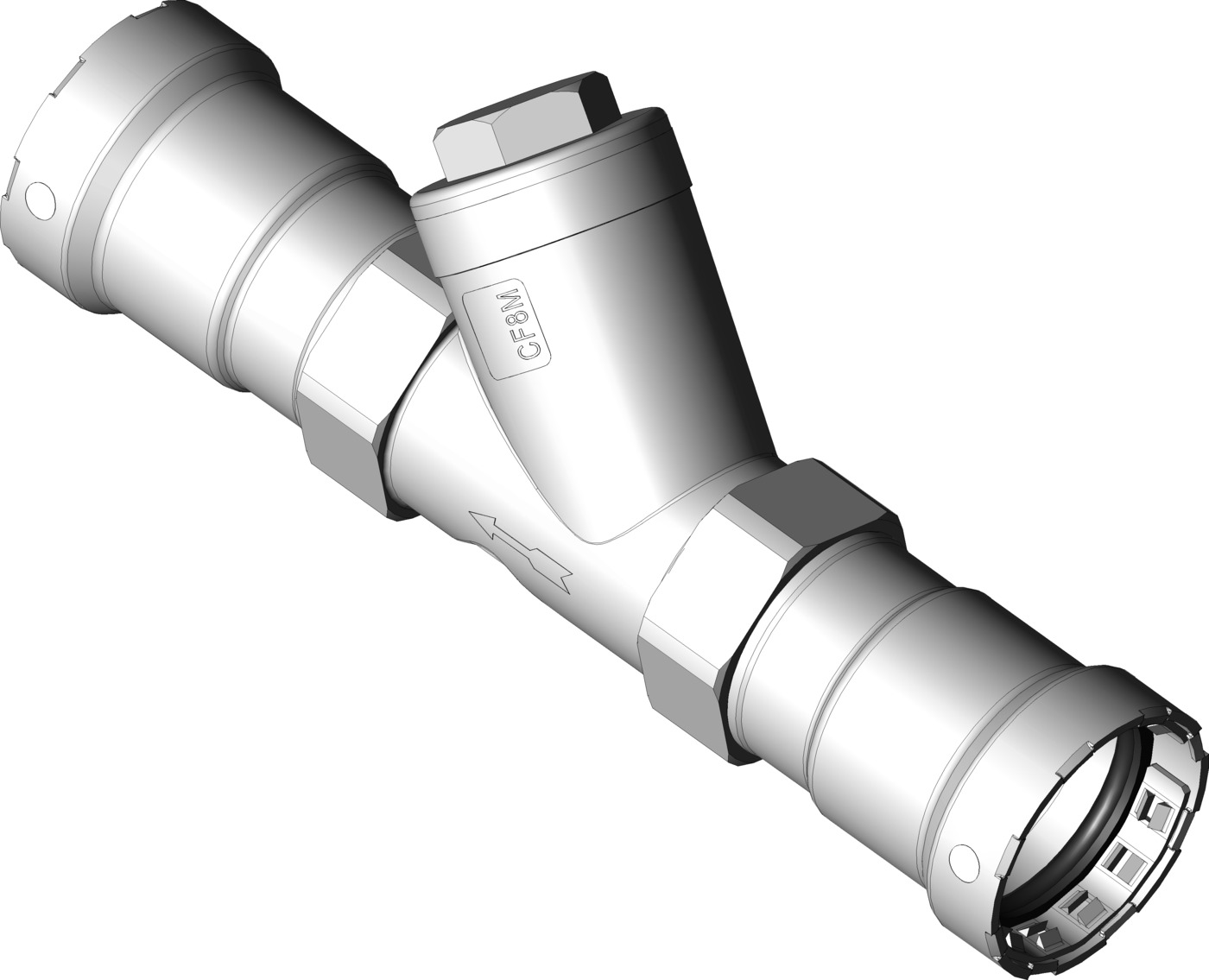

Viega MegaPress FKM wye strainer

Viega MegaPress FKM wye strainer

Smart Connect Technology
  • For use with Sch. 5 to Sch. 40 carbon steel pipe
  • Not suitable for potable water installations, fuel gas application
  • 316 stainless steel valve/Carbon steel press ends
  • Press connection
  • Mesh 20, carbon steel press ends

Components

FKM sealing element

Model 5981.1

Article

P1 P2 Wt [lb] DG Quantity Part No amount
½ ½ 0.890 1 87110
¾ ¾ 1.272 1 87115
1 1 2.255 1 87120
1¼ 1¼ 3.152 1 87125
1½ 1½ 4.025 1 87130
2 2 5.819 1 87135

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P1 P2 file size Part No
½ ½ 236 KB 87110
¾ ¾ 209 KB 87115
1 1 238 KB 87120
1¼ 1¼ 233 KB 87125
1½ 1½ 246 KB 87130
2 2 258 KB 87135

Z-dimensions

P1 P2 Z1 [mm] Z2 [mm] L1 [mm] L2 [mm] H1 [mm] H2 [mm] WS1 [mm] WS2 [mm] WS3 [mm] Part No
½ ½ 46 62 73 89 43 16 26 21 26 87110
¾ ¾ 52 72 81 101 51 19 32 21 32 87115
1 1 55 86 89 120 64 23 40 30 40 87120
1¼ 1¼ 58 93 105 140 70 28 48 29 48 87125
1½ 1½ 60 101 108 148 81 31 55 32 55 87130
2 2 66 117 116 168 90 37 68 32 68 87135

WS1 [mm] = wrench size
