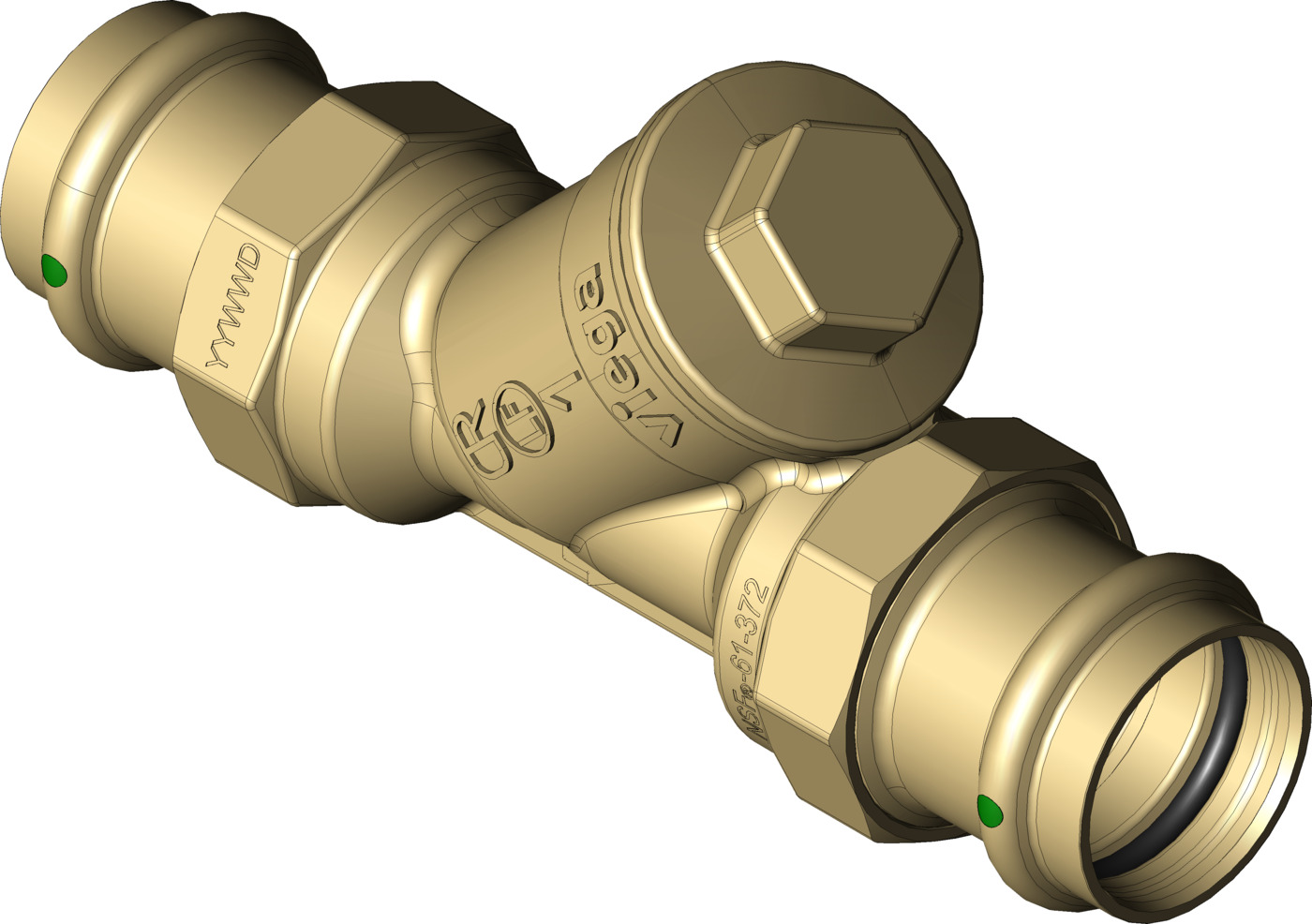

Viega ProPress wye strainer

Viega ProPress wye strainer

Zero Lead
Smart Connect Technology
  • For potable water installations
  • Not suitable for gas installation
  • Bronze, brass
  • Press connection
  • Mesh 20

Model 2981.1ZL

Article

P1 P2 Wt [lb] DG Quantity Part No amount
½ ½ 0.551 8 1 87230
¾ ¾ 0.771 8 1 87235
1 1 1.212 8 1 87240
1¼ 1¼ 1.873 8 1 87245
1½ 1½ 2.741 8 1 87250
2 2 3.747 8 1 87255

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please choose)

P1 P2 file size Part No
½ ½ 783 KB 87230
¾ ¾ 785 KB 87235
1 1 845 KB 87240
1¼ 1¼ 913 KB 87245
1½ 1½ 914 KB 87250
2 2 929 KB 87255

Z-dimensions

P1 P2 Z1 [mm] Z2 [mm] L1 [mm] L2 [mm] H1 [mm] H2 [mm] WS1 [mm] WS2 [mm] WS3 [mm] Part No
½ ½ 23 49 44 70 40 15 19 26 26 87230
¾ ¾ 34 55 57 78 44 18 25 32 32 87235
1 1 38 66 61 89 51 22 21 40 40 87240
1¼ 1¼ 34 77 60 103 63 26 25 49 49 87245
1½ 1½ 34 87 70 123 72 30 25 55 55 87250
2 2 40 100 80 140 79 36 25 67 67 87255

WS1 [mm] = wrench size
